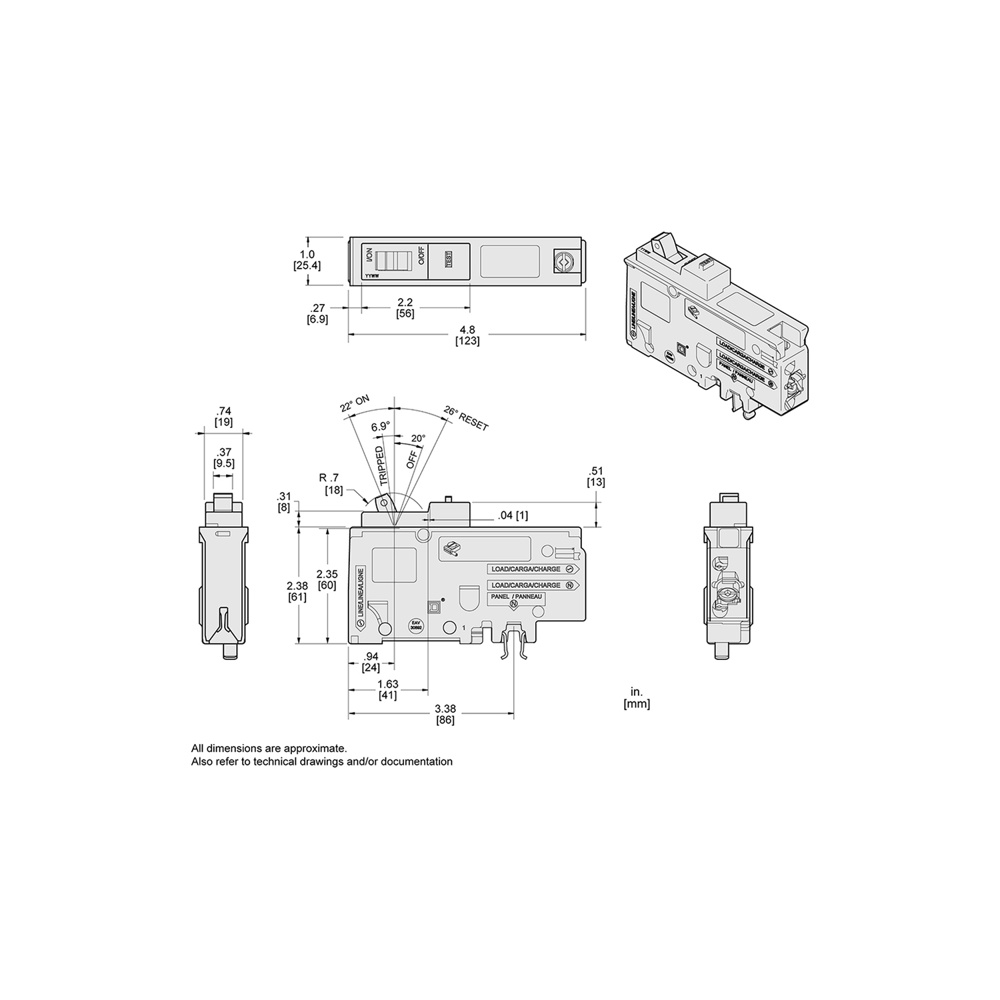

Homeline® miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This breaker has a pigtail neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1. inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified.

Details:

• Homeline™ Circuit Breakers are apart of the Square D™ making them compatible with Homeline™ electrical panels and CSEDs
• Designed to protect against equipment overloads and short-circuits
• For residential and commercial use
• Product characteristics conformity is certified by the Underwriters Laboratories (UL)
