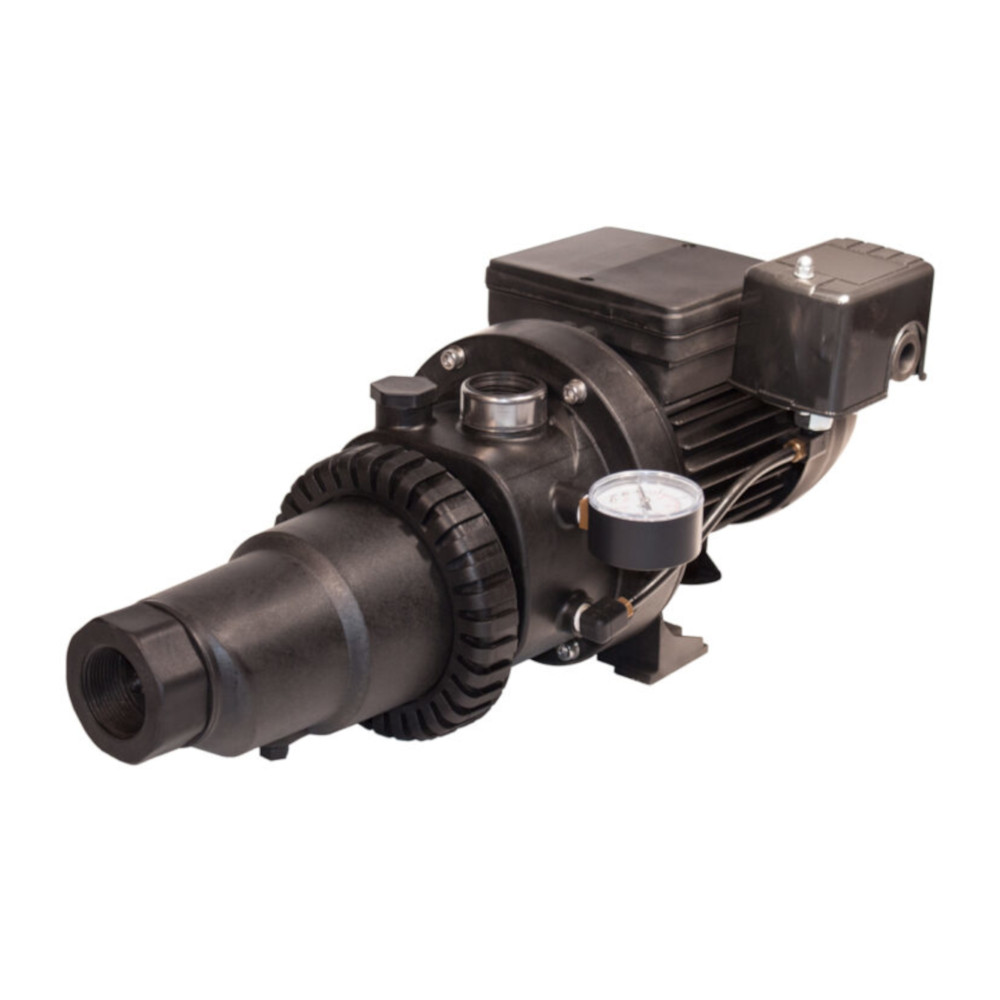

The BURCAM 506721P Noryl Convertible Jet Pump is designed to work with a captive air pressure tank to supply potable water to a home, cottage, or farm. It can be configured for shallow wells (maximum vertical lift 25 ft) or deep wells (ejector in the well) with a maximum vertical lift of 80 ft.

Powered by a 3/4 HP dual-voltage (115/230V) totally enclosed fan-cooled motor, it features full-time run capacitor plus automatic thermal and overload protection for dependable operation. The large Noryl body is easy to prime and helps deliver clean, rust-free water. It can produce up to 60 PSI, and comes assembled with a 30/50 PSI pressure switch and a 0–100 PSI pressure gauge. Capacity is up to 800 US GPH (shallow well) and 675 US GPH (deep well).

Features:

• Totally enclosed fan-cooled motor 115/230V, 60Hz
• Bearing to bearing stainless steel motor shaft,
• Automatic thermal and overload protection
• Full-time run capacitor
• 1 1/4’’ NPT suction and 1’’ NPT discharge
