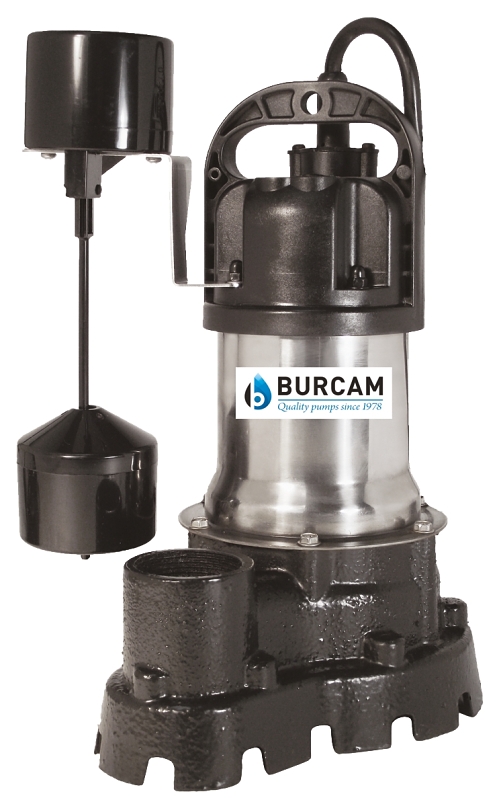

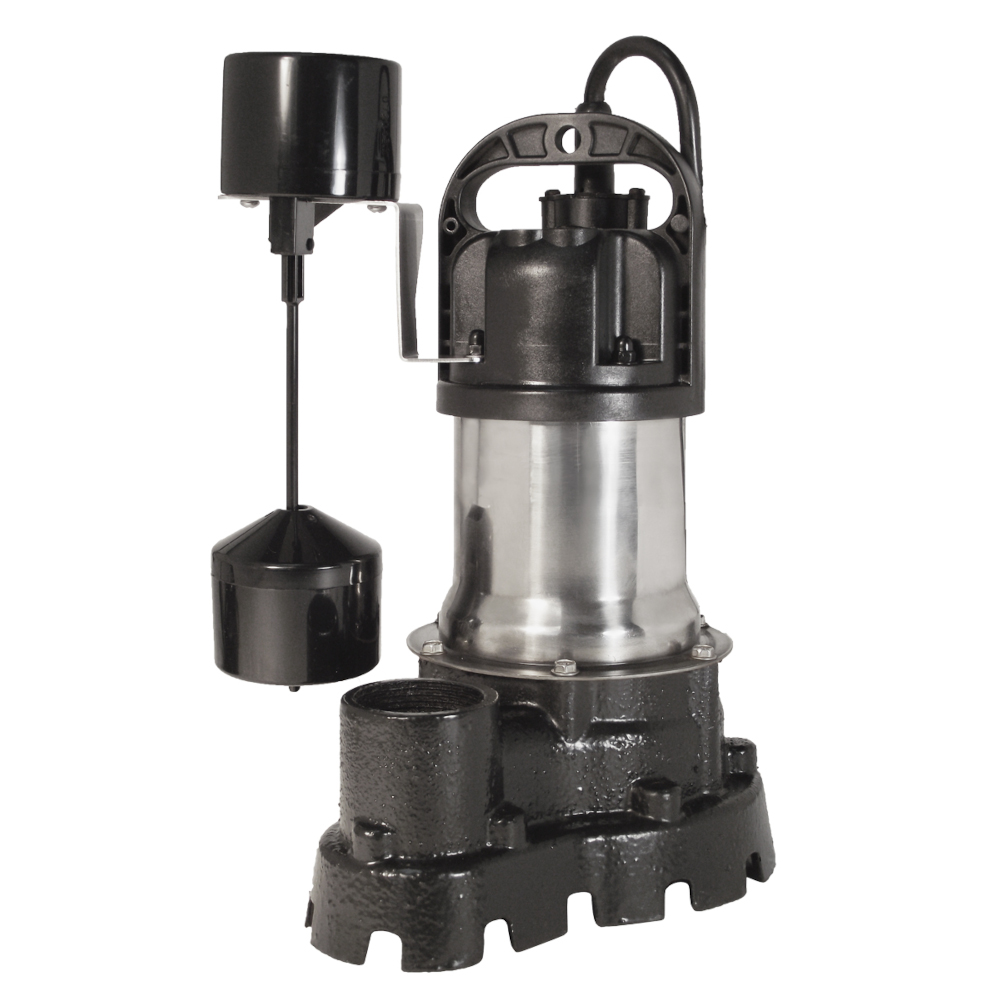

The BURCAM 300526 submersible effluent pump is designed for residential applications, suitable for a new installation or as a replacement for an existing upright or submersible sump/effluent pump. It uses a 1/2 HP, 115V motor with automatic thermal and overload protection for reliable operation.

A vertical float switch provides automatic on/off control and works in basins 10″ diameter or larger. The pump handles up to 1/2″ solids and includes a non-corrosive thermoplastic, clog-free vortex impeller. Construction combines a stainless steel motor casing with a rugged cast iron body. Performance is rated at a maximum head of 25 ft and capacity up to 4,400 US GPH

Features:

• Handles 3/4’’ solids
• 115V, 60Hz motor, with thermal and overload protection
• 1-1/2’’ discharge with 1-1/4’’ reducer
• Pump body made of rugged cast iron
• Oil-cooled motor
• 8’ electrical cord
• Vertical switch (300622, 300526)
