The Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit with uCAL user-calibration is a full indoor/outdoor leveling solution built for accuracy, long runtime, and jobsite durability. It features Dual Dial-In Slope to adjust grade on both the X and Y axes for grading applications, and offers Bluetooth® connectivity to the Bosch Leveling Remote App for remote control of on/off, slope settings, and more.
Powered by a Bosch CORE18V® 4.0Ah battery (compatible with 4.0Ah and 8.0Ah CORE18V® packs), it also includes an alkaline adapter to run on four D-cell batteries. The tool is engineered with a protective cage overmold and innovative handle design, and is built to IP68 dust and water protection standards. The uCAL feature guides users step-by-step through calibration to reduce downtime and confirm accuracy.

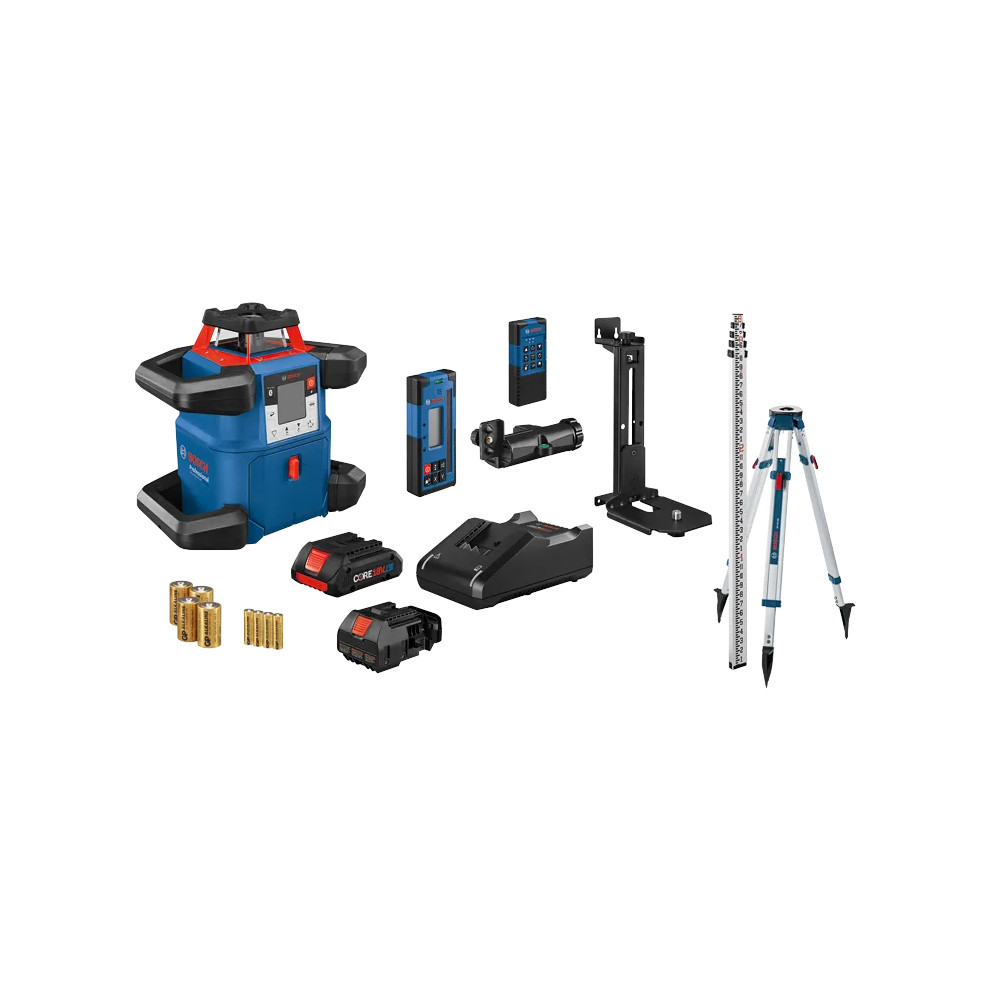

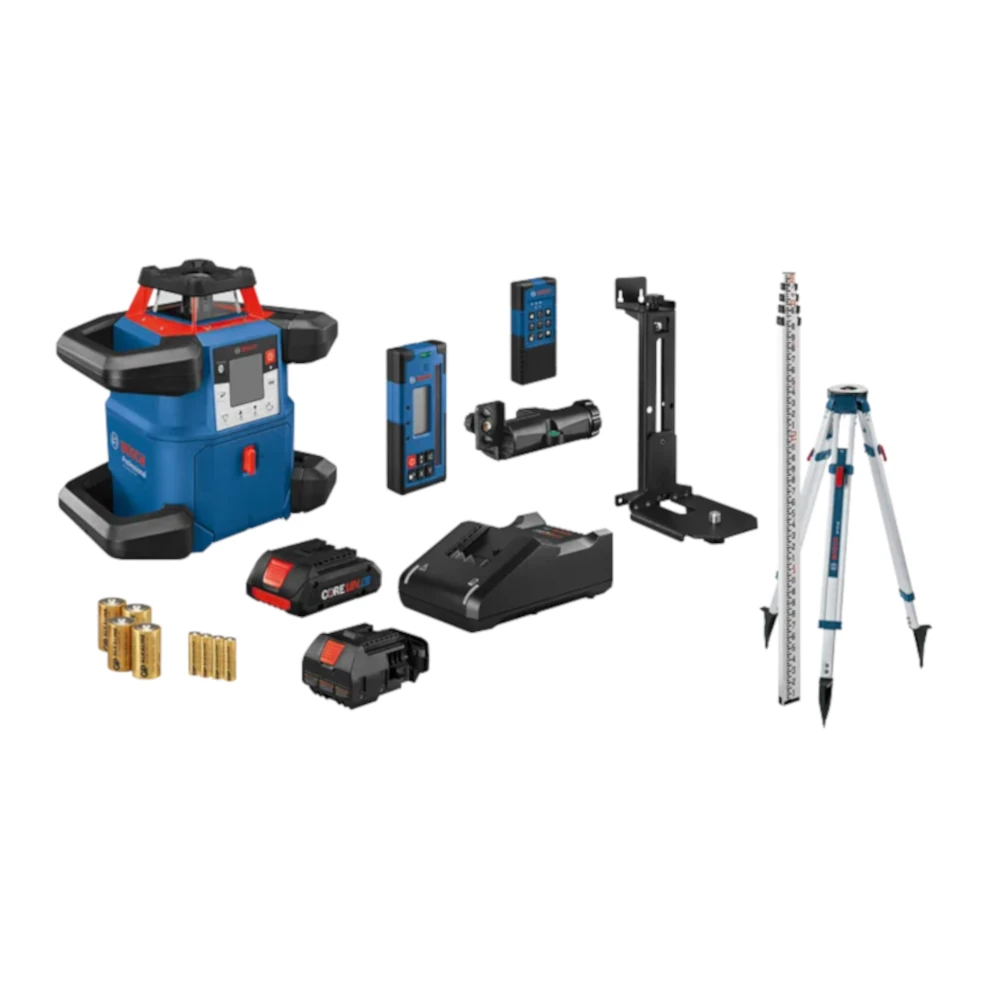

Performance includes accuracy up to ±1/16″ at 100 ft (horizontal) and ±1/8″ at 100 ft (vertical), plus a working range of up to 4,000 ft with a receiver. A 90° vertical beam supports layout, squaring, and plumb tasks. The kit includes a remote control, 18V 4.0Ah battery and charger, alkaline adapter, wall mount, laser receiver, aluminum tripod, grade rod, and hard carrying case.
Features:
- Fully featured rotary laser – has Dual Dial-In Slope, CORE18V® power, Bluetooth® connectivity, uCAL user-calibration and more
- Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
- Dual power source – for extended runtime and option of a 4 Ah CORE18V® battery or a battery adapter with four (D) cell batteries
- Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
- Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
- uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
- Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
- Vertical-beam functionality – provides a vertical beam at 90° point for layout, squaring and plumb applications
- Electronic self-leveling – allows for easy setup and use on the job
- Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
- Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions
- Comprehensive kit – includes a remote control, 18V 4.Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
- Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
- Bosch 18V chargers are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
